Cylindrical quick connection terminal 3 in 6 out 2 In 4 out
- Contact: John . Carol
- Telephone: +86-577-62652185
- whatsapp: +8613819768195
- E-mail: hanmo@hanmoel.com
PRODUCT MANUAL:
PC engineering plastic shell, UL 94V-0 flame retardant grade; stainless steel shrapnel, high conductivity copper and steel
plate connection terminal; suitable for single strand and multiple strand conductors.
|

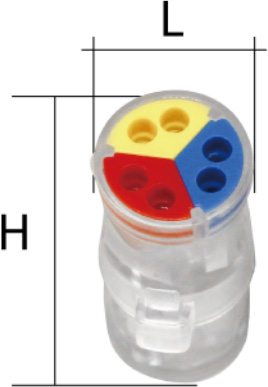

Model |
Digits |
Amp |
Volt |
L |
H |
Wire Range |
|
MM |
||||||
|
724 |
2 in and 4out |
32A |
380V |
15 |
38 |
Hard wire0.5-2.5mm2 |
|
736 |
3 in and 6 out |
32A |
380V |
18 |
38 |
Hard wire0.5-2.5mm2 |
