PRODUCT MANUAL:
PC engineering plastic shell, UL 94V-0 flame retardant grade; stainless steel shrapnel, high conductivity copper and steel
plate connection terminal, suitable for single strand and multiple strand conductors.
|

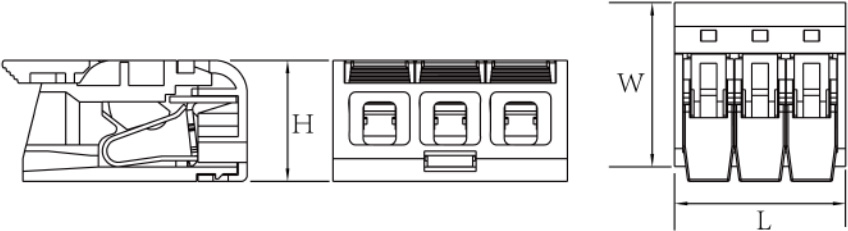

Model |
Digits |
Amp |
Volt |
L |
W |
H |
Wire Range |
|
MM |
|||||||
|
221-412 |
2 |
32A |
450V |
13.1 |
19.3 |
9.7 |
0.14-4.0mm2 |
|
221-413 |
3 |
32A |
450V |
18.8 |
19.3 |
9.7 |
0.14-4.0mm2 |
|
221-414 |
4 |
32A |
450V |
24.3 |
19.3 |
9J |
0.14-4.0mm2 |
|
221-415 |
5 |
32A |
450V |
30.0 |
19.3 |
9.7 |
0.14-4.0mm2 |
|
221-612 |
2 |
40A |
450V |
15.6 |
23.5 |
12.3 |
0.5-6.0mm2 |
|
221-613 |
3 |
40A |
450V |
22.1 |
23.5 |
12.3 |
0.5-6.0mm2 |
|
221-614 |
4 |
40A |
450V |
28.7 |
23.5 |
12.3 |
0.6-6.0mm2 |
|
221-615 |
5 |
40A |
450V |
35.0 |
23,5 |
12.3 |
0.5-6.0mm2 |
