PCT QUICK CONNECT TERMINAL 222 SERIES
- Contact: John . Carol
- Telephone: +86-577-62652185
- whatsapp: +8613819768195
- E-mail: hanmo@hanmoel.com
PRODUCT MANUAL:
PC engineering plastic shell UL 94V-0 flame retardant grade; stainless steel shrapnel, high conductivity copper and steel
plate connection terminal; suitable for single strand and multiple strand conductors.
|

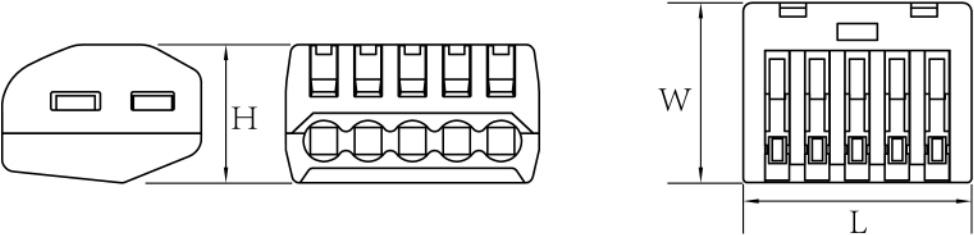

Model |
Digits |
Amp |
Volt |
L |
W |
H |
Wire Range |
|
MM |
|||||||
|
222-412 |
2 |
32A |
250V |
12.8 |
20.7 |
14.6 |
0.75-2.5mm2 |
|
222-413 |
3 |
32A |
250V |
17.6 |
20.7 |
14.6 |
0.14-4.0mm2 |
|
222-414 |
4 |
32A |
250V |
22.0 |
20.7 |
14.6 |
0.08-2.5 (4.0)mm2 |
|
222-415 |
5 |
32A |
250V |
26.9 |
20.7 |
14.6 |
0.75-2.5mm2 |
|
222-418 |
8 |
32A |
250V |
40.2 |
20.7 |
14.6 |
0.08-2.5 (4.0)mm2 |
